Geospatial analysis and spatial autocorrelation

Geospatial analysis comprises statistical and computational methods developed for data with an explicit spatial dimension. Its aim is to understand, explain, and model spatial patterns and processes by incorporating spatial structure directly into the analysis.

A key motivation for geospatial analysis is the presence of spatial autocorrelation, which violates the assumption of independent and identically distributed (iid) observations used in classical statistics. Spatial autocorrelation arises because nearby locations tend to exhibit similar characteristics—a principle formalized in Tobler’s First Law of Geography, which states that everything is related to everything else, but near things are more related than distant things. As a result, geographic data often display spatial clustering rather than randomness.

Spatial autocorrelation is particularly common in social and regional data, where demographic and socio‑economic variables (such as income, unemployment, or migration) tend to be positively spatially autocorrelated. Geospatial analysis provides tools to detect, model, and interpret these dependencies using spatial autocorrelation measures and spatially explicit modelling approaches.

Understanding spatial dependence is essential, as observed spatial autocorrelation may reflect underlying spatial processes—or alternatively, model misspecification. Consequently, geospatial modelling requires careful consideration of spatial structure, scale, and the definition of spatial relationships.

Global Spatial Autocorrelation

Geospatial data analysis is challenged by the presence of spatial dependence among nearby observations. This spatial dependence can be revealed with spatial autocorrelation. For instance, global spatial autocorrelation can be measured with Moran’s I, which is an indicator of spatial proximity used in geography. Moran’s I is a single global indicator of a large area which does not reveal the detailed clusters involved in the spatial autocorrelation. Moran I is used in the articles I and V.

Spatial autocorrelation is when the value at any one point in space is dependent on values at the surrounding points. That is, the arrangement of values is not just random. Positive spatial correlation means that similar values tend to be near each other. Negative spatial correlation means that different values tend to be near each other.

Moran’s I is calculated as:

$I = \frac{ n \sum_{i=1}^{n} \sum_{j=1}^{n} w_{ij} (y_i - \bar{y})(y_j - \bar{y}) }{ \sum_{i=1}^{n} (y_i - \bar{y})^2 \;\; \sum_{i=1}^{n} \sum_{j=1}^{n} w_{ij} }$

where
- $y_i$ is the value of the variable in area i,
- $\bar{y}$ is the mean of the variable, and
- $w_{ij}$ is an element of the spatial weight matrix defining the spatial relationship between areas i and j.

Global spatial autocorrelation can be measured using Moran’s I, a commonly used indicator of spatial dependence in geography. The statistic typically ranges from −1 to 1, where values close to 0 indicate a random spatial pattern. Values close to −1 indicate strong negative spatial autocorrelation, while values close to 1 indicate strong positive spatial autocorrelation.

The expected value of Moran’s I under spatial randomness is:

$E(I) = \frac{-1}{m - 1}$

where $m$ is the number of spatial units (e.g. municipalities). Values larger than the expected value indicate positive spatial autocorrelation, while values smaller than the expected value indicate negative spatial autocorrelation.

Example: Global Spatial Autocorrelation with Moran’s I

In this example, we demonstrate how to calculate and visualize global spatial autocorrelation using Moran’s I with the spdep package in R. We use the Columbus dataset, which is included in the package.

1. Load required package and data

# Install spdep if needed
# install.packages("spdep")
library(spdep)

# Load example dataset
data(columbus)

# Inspect the data
columbus[1:5,]

##          AREA PERIMETER COLUMBUS. COLUMBUS.I POLYID NEIG  HOVAL    INC    CRIME
## 1005 0.309441  2.440629         2          5      1    5 80.467 19.531 15.72598
## 1001 0.259329  2.236939         3          1      2    1 44.567 21.232 18.80175
## 1006 0.192468  2.187547         4          6      3    6 26.350 15.956 30.62678
## 1002 0.083841  1.427635         5          2      4    2 33.200  4.477 32.38776
## 1007 0.488888  2.997133         6          7      5    7 23.225 11.252 50.73151
##          OPEN    PLUMB DISCBD     X     Y   AREA NSA NSB EW CP THOUS NEIGNO
## 1005 2.850747 0.217155   5.03 38.80 44.07 10.391   1   1  1  0  1000   1005
## 1001 5.296720 0.320581   4.27 35.62 42.38  8.621   1   1  0  0  1000   1001
## 1006 4.534649 0.374404   3.89 39.82 41.18  6.981   1   1  1  0  1000   1006
## 1002 0.394427 1.186944   3.70 36.50 40.52  2.908   1   1  0  0  1000   1002
## 1007 0.405664 0.624596   2.83 40.01 38.00 16.827   1   1  1  0  1000   1007
##         PERIM
## 1005 2.440629
## 1001 2.236939
## 1006 2.187547
## 1002 1.427635
## 1007 2.997133

More information about the dataset can be found by typing:

?columbus

## Help on topic 'columbus' was found in the following packages:
##
##   Package               Library
##   spdep                 /home/runner/work/_temp/Library
##   spData                /home/runner/work/_temp/Library
##
##
## Using the first match ...

2. Create a spatial weights matrix

To compute Moran’s I, we need a spatial weights matrix describing neighbourhood relationships.

The Columbus dataset already includes a contiguity-based neighbours object (col.gal.nb).

?nb2listw
colqueen <- nb2listw(col.gal.nb)
class(colqueen)

## [1] "listw" "nb"

The weights are row-standardized, meaning that each row sums to one.

colqueen$weights[1:3]

## [[1]]
## [1] 0.5 0.5
##
## [[2]]
## [1] 0.3333333 0.3333333 0.3333333
##
## [[3]]
## [1] 0.25 0.25 0.25 0.25

3. Moran’s I using normality approximation

We first compute Moran’s I using a normal approximation for the p-value.

?moran.test

moran.test(columbus$CRIME,colqueen,randomisation=FALSE, alternative="two.sided")

##
##  Moran I test under normality
##
## data:  columbus$CRIME
## weights: colqueen
##
## Moran I statistic standard deviate = 5.3818, p-value = 7.374e-08
## alternative hypothesis: two.sided
## sample estimates:
## Moran I statistic       Expectation          Variance
##       0.485770914      -0.020833333       0.008860962

We can also calculate Moran´s I for income:

moranINC <- moran.test(columbus$INC,colqueen,randomisation=FALSE,
alternative="two.sided")

print(moranINC)

##
##  Moran I test under normality
##
## data:  columbus$INC
## weights: colqueen
##
## Moran I statistic standard deviate = 4.6495, p-value = 3.327e-06
## alternative hypothesis: two.sided
## sample estimates:
## Moran I statistic       Expectation          Variance
##       0.416837942      -0.020833333       0.008860962

4. Moran’s I using permutation tests

Permutation tests avoid distributional assumptions and are often preferred.

morpermCRIME <- moran.mc(columbus$CRIME, colqueen, nsim = 99) # Moran's I with 99 permutations

morpermCRIME

##
##  Monte-Carlo simulation of Moran I
##
## data:  columbus$CRIME
## weights: colqueen
## number of simulations + 1: 100
##
## statistic = 0.48577, observed rank = 100, p-value = 0.01
## alternative hypothesis: greater

The permutation distribution can be extracted from the results:

morp <- morpermCRIME$res[-length(morpermCRIME$res)]

5. Visualizing the permutation distribution

We visualize the permutation distribution using a density curve, histogram, and reference line for the observed Moran’s I.

# Kernel density estimate
zz <- density(morp)

# Plot density curve
plot(zz,
     main = "Moran’s I Permutation Test",
     xlab = "Reference Distribution",
     lwd = 2,
     col = "red")

# Add histogram
hist(morp, freq = FALSE, add = TRUE)

# Add observed Moran's I as a vertical line
abline(v = morpermCRIME$statistic,
       lwd = 2,
       col = "blue")

Interpretation (for teaching)

Positive Moran’s I - spatial clustering of similar values
Negative Moran’s I - spatial dispersion
Permutation test assesses significance without distributional assumptions
If the observed value lies in the tail of the permutation distribution, spatial autocorrelation is significant

Example: Moran I and function

In this exercise, you will calculate global spatial autocorrelation for municipal net migration using a simple function. The aim is to analyse how spatial autocorrelation has changed between 1990 and 2024. The dataset used in the exercise is sourced from the Sotkanet database.

1. Reading the attribute data from the package

We first read a CSV file stored inside the R package.

The file is located in the inst/extdata/ directory, which is the recommended place for external data files bundled with a package.

The function system.file() ensures that the correct file path is found regardless of where the package is installed.

csv_path <- system.file("extdata",
  "netmigration.csv",
  package = "spatialcourseOL")

df <- read.csv(csv_path)
df$tunnus<- as.numeric(df$tunnus)

The municipality identifier (tunnus) is converted to numeric so that it matches the corresponding identifier used in the spatial data.

2. Downloading municipality boundaries

Next, we download up‑to‑date municipality boundaries for Finland using the geofi package.

This returns a spatial object (sf) that contains both geometry and attribute information for municipalities.

municipalities25 <- geofi::get_municipalities(year = 2025)

## Requesting response from: https://geo.stat.fi/geoserver/wfs?service=WFS&version=1.0.0&request=getFeature&typename=tilastointialueet%3Akunta4500k_2025

## Warning: Coercing CRS to epsg:3067 (ETRS89 / TM35FIN)

## Data is licensed under: Attribution 4.0 International (CC BY 4.0)

3. Merging attribute data with spatial data

We then join the migration data to the municipality boundaries.

A left join is used so that all municipalities are retained, even if some municipalities are missing migration values for certain years.

This is important for spatial analysis, as removing spatial units would alter neighbourhood relationships.

migra <- left_join(municipalities25,df, by = c("kunta" = "tunnus")) # why we use left_join?

4. Preparing spatial coordinates

To construct spatial weight matrices, we first extract the spatial coordinates of municipalities.

These coordinates represent the centroids of each spatial unit.

# create weights object
#install.packages("sfdep")
library(sfdep)
#coords<-coordinates(municipalities2_monip)
coords<-st_coordinates(migra)

5. Creating spatial weight matrices

We define spatial neighbourhood relationships using k‑nearest neighbours, where each municipality is connected to its six nearest neighbours.

This approach ensures that all municipalities have the same number of neighbours, avoiding isolated units.

The neighbour structure is converted into a spatial weights object required for spatial autocorrelation analysis.

# create spatial weigth matrices, 6 nearest neighbors
migra_kn6<-st_knn(sf::st_geometry(migra), k = 6)

## ! Polygon provided. Using point on surface.

migra_kn6_w<- nb2listw(migra_kn6)

6. Calculating Moran’s I for multiple years

We calculate global Moran’s I for net migration for each year in the period 1990–2024.

The migration values for different years are stored in columns 73–107 of the dataset.

A loop is used to compute Moran’s I separately for each year, and only the Moran’s I coefficient is stored.

pros=migra[,73:107]
pros<-as.data.frame(pros)
moranit=numeric()
for (i in 1:35){
  m=moran.test(pros[[i]], listw=migra_kn6_w , alternative="two.sided")
  kerroin=m$est[1]
  moranit[[as.character(i)]]=kerroin
}
moranit

##          1          2          3          4          5          6          7
## 0.23650350 0.26804452 0.12524840 0.06419888 0.16173170 0.19430971 0.24699405
##          8          9         10         11         12         13         14
## 0.36820975 0.41920222 0.40897351 0.32414279 0.43740533 0.37781769 0.28625821
##         15         16         17         18         19         20         21
## 0.29681771 0.28202448 0.31187575 0.28542425 0.27409294 0.20266999 0.19709253
##         22         23         24         25         26         27         28
## 0.14453258 0.20005530 0.17178094 0.15570028 0.07451206 0.13310935 0.22488704
##         29         30         31         32         33         34         35
## 0.21496010 0.14385549 0.04978913 0.13299150 0.16007641 0.14067518 0.07985109

7. Creating a results dataframe

The Moran’s I values are converted into a dataframe and combined with a corresponding year variable.

This structure is suitable for time‑series visualization.

# let's create a dataframe from results
morans_vuosi=as.data.frame(moranit)
aika<- seq(1990, 2024, 1) # a new variable from years
morans_vuosi$Vuosi<-aika # add year variable to dataframe

8. Visualising the results

Finally, we visualise the development of spatial autocorrelation over time using ggplot2.

The plot shows how Moran’s I for net migration evolves across years, including a smoothed trend line to highlight overall change.

library(ggplot2)
fig1<-ggplot(data=morans_vuosi, aes(x=Vuosi, y=moranit)) + geom_line(linewidth=1.5) + geom_point(size=3)+
  labs(title="Spatial autocorrelation of the netmigration",
       x="Year", y="Moran I",
       subtitle="Time period 1990-2024") +
  theme(axis.text.x = element_text(angle = 90, hjust = 1))+
  theme(legend.position="none") +
  geom_smooth(colour="gray10") + scale_x_continuous(breaks=seq(1990, 2024, 4)) +
  scale_y_continuous(breaks=seq(-0.2, 0.6, 0.1), limits=c(-0.20,0.6)) +
  theme(axis.text.y = element_text(size=14, face = "bold"),
        axis.text.x = element_text(size=12),
        axis.title=element_text(size=14, face="bold"))

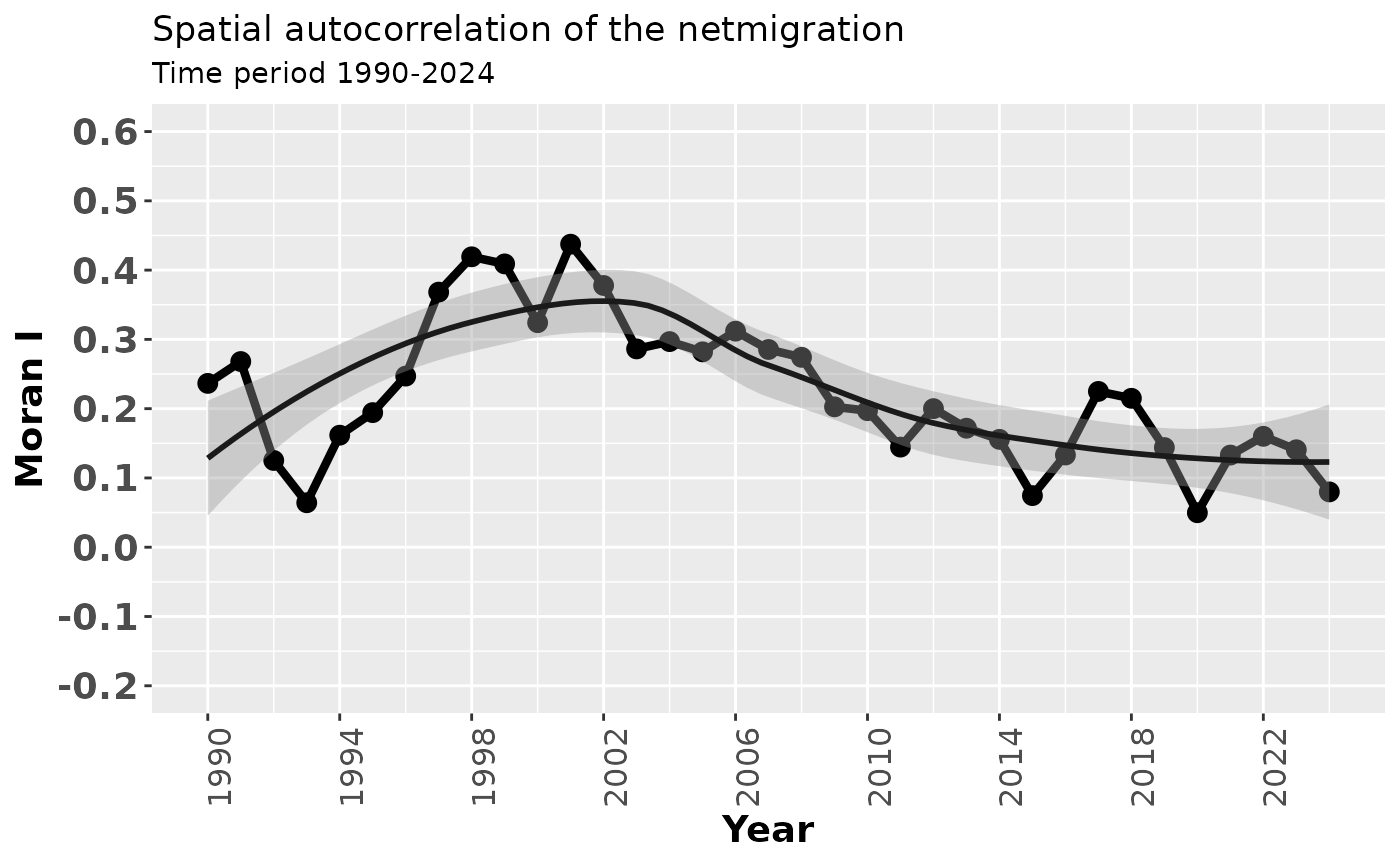

See the figure:

fig1

## `geom_smooth()` using method = 'loess' and formula = 'y ~ x'

Analysing temporal autocorrelation of Moran’s I

After computing Moran’s I values for each year, we next investigate whether these values themselves exhibit temporal autocorrelation. This helps us understand whether spatial autocorrelation in net migration is persistent from year to year.

Computing the autocorrelation function (ACF)

We first compute the autocorrelation function (ACF) for the time series of Moran’s I values using the acf() function.

The result is stored as an object that contains the autocorrelation coefficients at different time lags.

c<-acf(morans_vuosi$moranit)

To facilitate plotting with ggplot2, we extract the lag values and autocorrelation coefficients into a data frame.

cdf <- with(c, data.frame(lag, acf))

Defining confidence limits

We calculate approximate confidence limits for the autocorrelation values under the assumption of white noise.

If an autocorrelation coefficient exceeds these limits, it can be considered statistically significant.

ci=0.95

ciline<-qnorm((1 + ci)/2)/sqrt(c$n.used)

Visualising the ACF with ggplot2

Next, we visualise the autocorrelation structure using ggplot2.

The plot shows the ACF values as vertical segments, together with horizontal reference lines at zero and the confidence limits.

kuva1_acf<- ggplot(data = cdf, mapping = aes(x = lag, y = acf)) +
  geom_line(lwd=1.4, color="black") +
  geom_hline(aes(yintercept = 0)) +
  geom_segment(mapping = aes(xend = lag, yend = 0)) +
  labs(title = "Autocorrelation of the netmigration",
       x="Lag", y="ACF") +
  geom_hline(aes(yintercept = ciline), linetype = 2, color = 'darkblue', lwd=1.2) +
  geom_hline(aes(yintercept = -ciline), linetype = 2, color = 'darkblue',lwd=1.2) +
  scale_x_continuous(breaks=seq(0, 15, 1)) +
  scale_y_continuous(breaks=seq(-0.5, 1, 0.2), limits=c(-0.5,1)) +
  theme(axis.text.y = element_text(size=14, face = "bold"),
        axis.text.x = element_text(size=12),
        axis.title=element_text(size=14, face="bold"))

Traditional base‑R ACF plot

For comparison, we also produce the standard base‑R autocorrelation plot. This plot provides the same information but is generated automatically without manual control over graphical elements.

k1<-plot(c, main="Autocorrelation of the netmigration",
         xlab="Lag (years)", ylab="ACF")

Combining plots

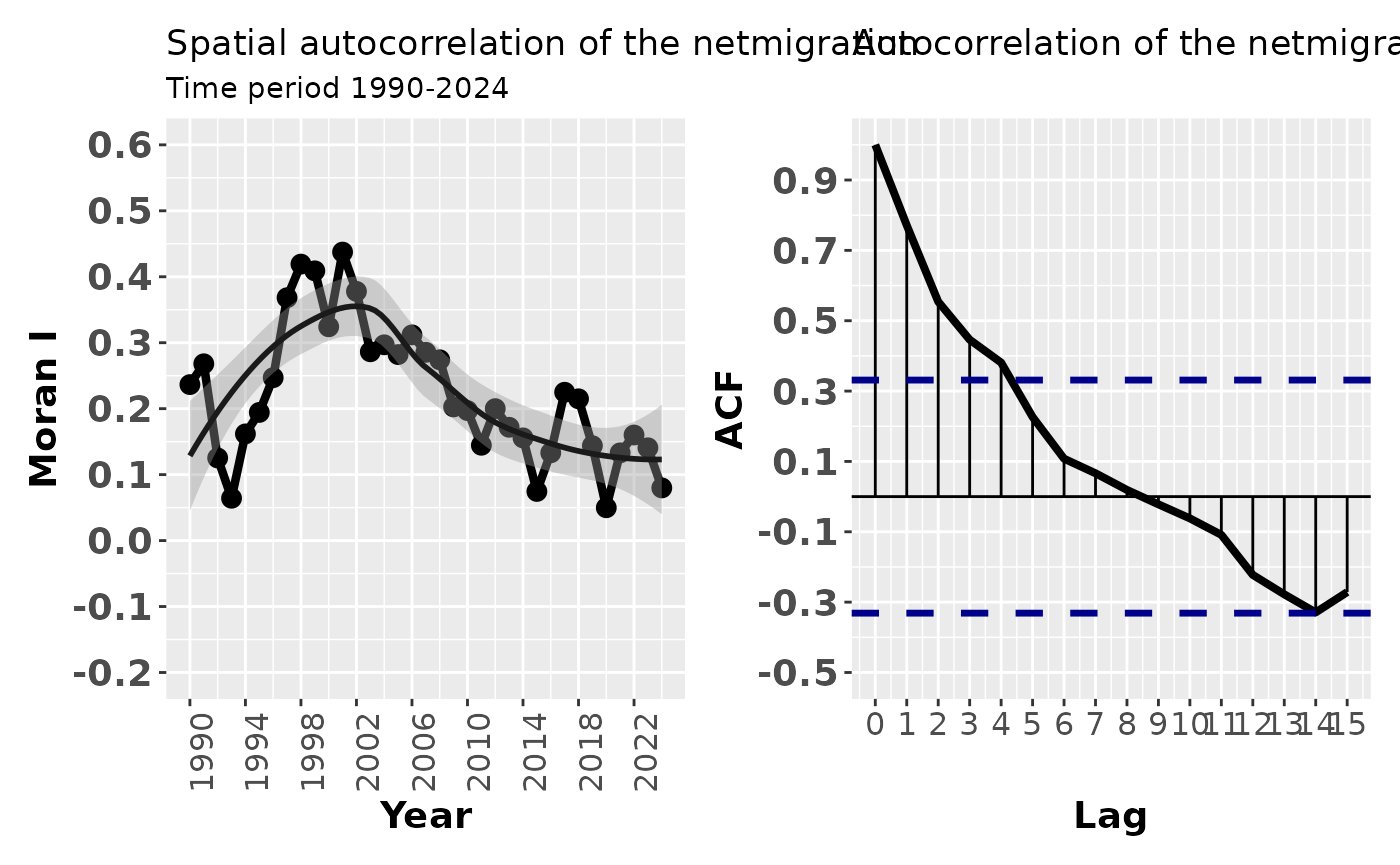

Finally, we combine the previously created ggplot‑based figure with the base‑R plot layout using the patchwork package.

This allows us to display multiple visualisations side by side for comparison.

library(patchwork)
fig1 + kuva1_acf

## `geom_smooth()` using method = 'loess' and formula = 'y ~ x'

Interpretation

Significant ACF values at low lags indicate temporal persistence in spatial autocorrelation.
If Moran’s I values are autocorrelated over time, spatial clustering patterns tend to evolve gradually rather than abruptly.
This analysis complements spatial autocorrelation analysis by revealing temporal structure in spatial dependence.

Local Spatial Autocorrelation

Moran’s I is a single global indicator and therefore does not reveal the detailed spatial clusters underlying spatial autocorrelation. To investigate spatial autocorrelation at the level of individual spatial units, local spatial autocorrelation indices, such as LISA (Local Indicators of Spatial Association), can be used. These indices indicate statistically significant spatial clustering of similar values, dissimilar values, or random patterns around each observation, allowing us to identify where spatial autocorrelation exists in the dataset (Anselin, 1995).

Under the randomization hypothesis, the expected value of the local Moran’s I for location i is

$E(I_i) = -\frac{w_i}{m - 1},$

where $w_i$ is the sum of the elements $\sum_j w_{ij}$ in row i of the spatial weight matrix $\mathbf{W}$ , and $m$ is the number of spatial units.

A positive value of $I_i$ indicates spatial clustering of similar values between a region and its neighbours, whereas a negative value indicates spatial clustering of dissimilar values. An area is considered to exhibit spatial autocorrelation if the local indicators reveal statistically significant positive autocorrelation. For further details on LISA statistics, see Anselin (1995).

1Loading required packages

We first load the packages needed for spatial data handling, spatial statistics, data manipulation, and visualisation.

library(sf)
library(rgeoda)
library(ggplot2)
library(dplyr)
library(janitor)

Steps 2-4 are identical for previous example.

2. Reading the attribute data from the package

We first read a CSV file stored inside the R package.

The file is located in the inst/extdata/ directory, which is the recommended place for external data files bundled with a package.

The function system.file() ensures that the correct file path is found regardless of where the package is installed.

csv_path <- system.file("extdata",
  "netmigration.csv",
  package = "spatialcourseOL")

df <- read.csv(csv_path)
df$tunnus<- as.numeric(df$tunnus)

The municipality identifier (tunnus) is converted to numeric so that it matches the corresponding identifier used in the spatial data.

3. Downloading municipality boundaries

Next, we download up‑to‑date municipality boundaries for Finland using the geofi package.

This returns a spatial object (sf) that contains both geometry and attribute information for municipalities.

municipalities25 <- geofi::get_municipalities(year = 2025)

## Requesting response from: https://geo.stat.fi/geoserver/wfs?service=WFS&version=1.0.0&request=getFeature&typename=tilastointialueet%3Akunta4500k_2025

## Warning: Coercing CRS to epsg:3067 (ETRS89 / TM35FIN)

## Data is licensed under: Attribution 4.0 International (CC BY 4.0)

4. Merging attribute data with spatial data

We then join the migration data to the municipality boundaries.

A left join is used so that all municipalities are retained, even if some municipalities are missing migration values for certain years.

This is important for spatial analysis, as removing spatial units would alter neighbourhood relationships.

migra <- left_join(municipalities25,df, by = c("kunta" = "tunnus")) # why we use left_join?

5. Defining spatial neighbourhoods

To capture spatial relationships, we define neighbourhood structures based on spatial contiguity and k‑nearest neighbours.

Next, we define a k‑nearest‑neighbour structure with six neighbours per unit. This approach ensures that all spatial units receive an equal number of neighbours.

# Create k-nearest neighbours (k = 6)
migra_kn6 <- st_knn(st_geometry(migra), k = 6)

## ! Polygon provided. Using point on surface.

# Create spatial weights
wt <- st_weights(migra_kn6)

6. Calculating Local Moran’s I (LISA)

We calculate Local Moran’s I for net migration in the year 1990 (nm1990).

The calculation is applied directly within a mutate() call, which stores the results as a list column.

lisa <- migra %>%
  mutate(moran = local_moran(nm1990, migra_kn6, wt))

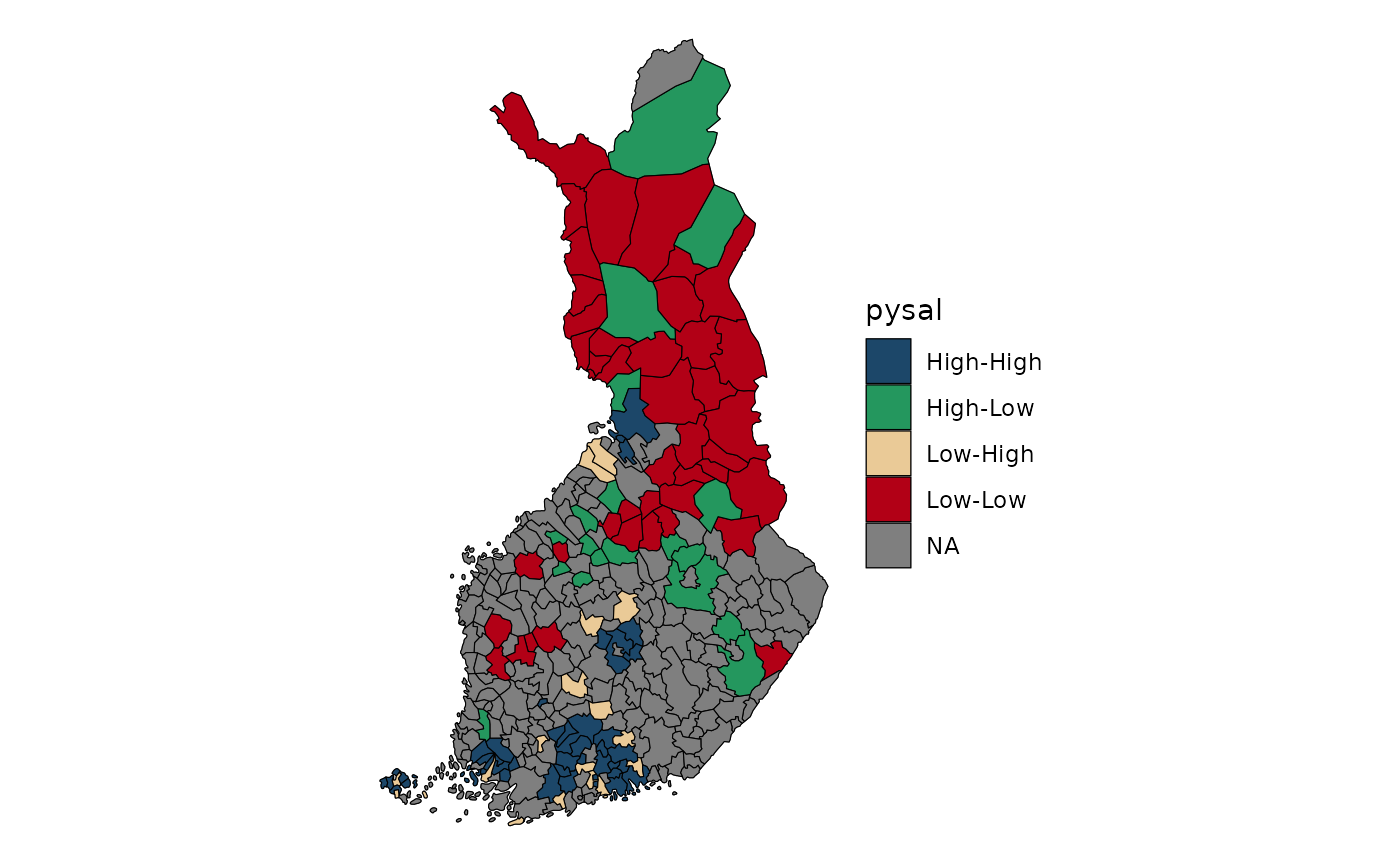

7. Visualising LISA clusters

To visualise the spatial clustering, we extract (unnest) the LISA results and display only statistically meaningful clusters.

Areas are classified based on the cluster type (high‑high, low‑low, high‑low, low‑high), and only results with meaningful significance levels are shown.

lisa %>%
  tidyr::unnest(moran) %>%
  mutate(pysal = ifelse(p_folded_sim <= 0.1,
                        as.character(pysal),
                        NA)) |>
  ggplot(aes(fill = pysal)) +
  geom_sf() +
  geom_sf(lwd = 0.2, color = "black") +
  theme_void() +
  scale_fill_manual(values = c(
    "#1C4769",  # High–High
    "#24975E",  # Low–Low
    "#EACA97",  # Low–High
    "#B20016"   # High–Low
  ))

Interpretation

High–High (HH) clusters indicate areas with high net migration surrounded by similarly high values.
Low–Low (LL) clusters indicate areas of low net migration surrounded by low values.
High–Low (HL) and Low–High (LH) clusters signal spatial outliers.
Statistically significant LISA results reveal localised spatial processes that are not visible in global Moran’s I.

Summary

This workflow demonstrates how to:

build spatial neighbourhoods,
compute Local Moran’s I,
and visualise spatial clusters of net migration.

LISA analysis provides crucial insight into where spatial dependence occurs, complementing global spatial autocorrelation measures.
